ACTIVE HARMONIC FILTER
AUTOMATICALLY DYNAMIC ACCURATE COMPENSATION HARMONICS
INTELLIGENT FFT ALGORITHM
Relisec Power Intelligent FFT is an iterative FFT algorithm updated computing power and deep experience in field since 2009. Harmonics detection algorithm is based on ADALINE (Adaptive Linear Neuron) Active Harmonic Filter based on FFT algorithm allows for precise detection and mitigation of harmonic distortions, thereby enhancing power quality, improving energy efficiency, and reducing operational costs in electrical systems.

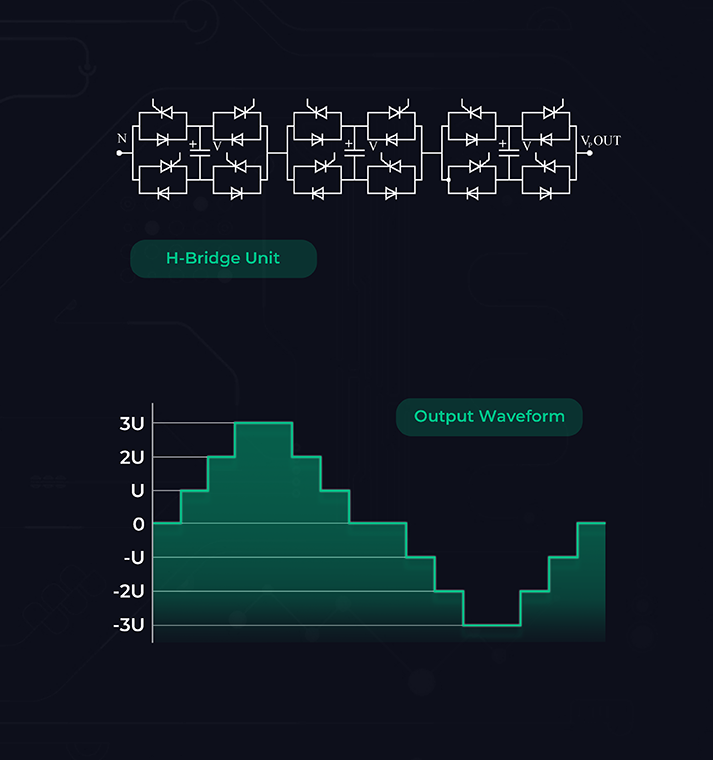

H-BRIDGE DRIVER CIRCUIT CONTROL THREE-PHASE IGBT
- Bi-directional Power Flow Control: H-bridge configuration facilitates two-way power flow in AHF inverters, not only the absorption of power from the grid to compensate for reactive power and harmonic distortions but also the capability to inject additional power back into the grid.
- Precise Switching Control: Meticulous control over the state of three-level IGBT switches which ameliorates both the voltage and current profiles of the electrical network.
- Enhancement of Energy Efficiency and Power Quality: In heavy industry environments, AHF equipped with H-bridge driving circuits effectively manage the electrical loads generated by high-power electric motors and other substantial electrical apparatuses.

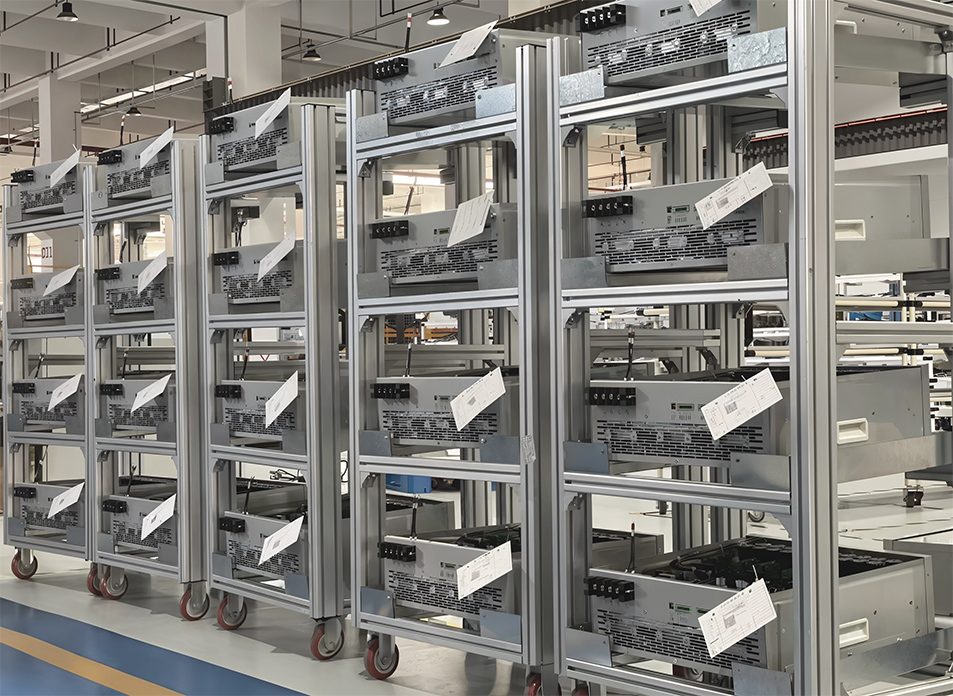

MODULAR COMPACT DESIGN
Ultra-Compact Design: Ideal for space-limited applications and retrofit projects.
Mounting Options: Wall and rack-mounted structures with refined capacity distribution.
Ease of Use: Designed for straightforward transportation, replacement, and panel integration.
Cabinet Flexibility: Offers plug and IP54 cabinets with top and bottom cable entries to meet diverse needs.
